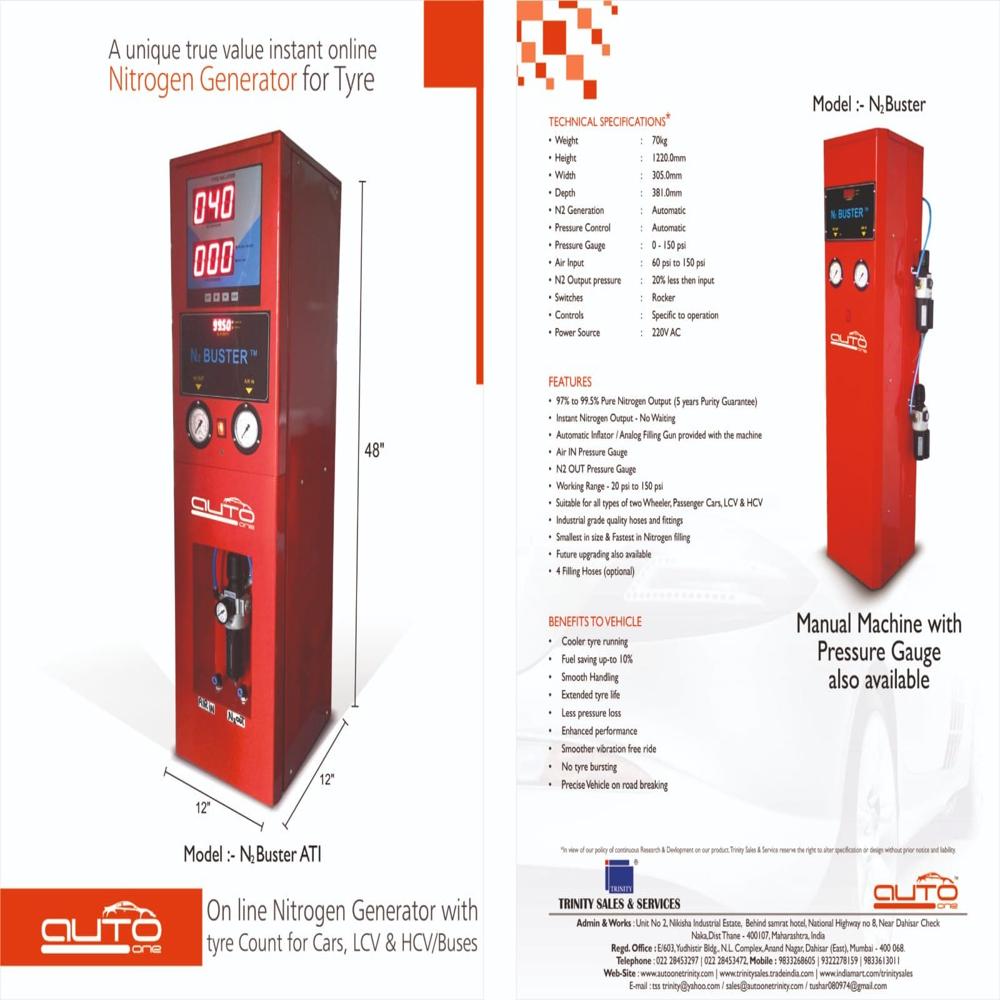

NITROGEN AIR INFLATOR

Name: NITROGEN AIR INFLATOR
Brand: TRINITI SALES AND SERVICES
Price: 125000.0 INR
Availability: InStock

Price 125000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

NITROGEN AIR INFLATOR Specification

Operating Temperature Range
-10C to 50C

Humidity Tolerance
0-90% RH

Purity of Nitrogen Output
95% - 99%

Noise Level
<70 dB

Input Pressure
8-10 kg/cm2

Weight
Approx. 38 kg

Number of Tyres Inflated Simultaneously
1

Display Type
Digital LED display

Output Flow Rate
60-70 L/min

Mounting Type
Floor standing

Inlet Connection
Standard Air Input Coupler

NITROGEN AIR INFLATOR Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
10 Days

About NITROGEN AIR INFLATOR

High-Purity Nitrogen Gas Generator by TRISS

Maximize your operational efficiency with the TRISS Nitrogen Gas Generator. This industrial-grade machine delivers high-purity nitrogen gas ranging from 97% to 99% purity. Engineered for high-demand tyre shops, automotive service centres, and diverse industrial operations, this generator connects directly to your existing air compressor to deliver a continuous, high-speed stream of pure nitrogen.

Featuring a dual-function design, the TRISS generator provides the flexibility to inflate tyres with either pure nitrogen or standard compressed air from a single unit. Equipped with a large digital display, it ensures precise, real-time pressure monitoring and features an intelligent auto-cutoff system to prevent over-inflation and enhance workshop safety.

Key Features and Benefits

97% to 99% Nitrogen Purity: Optimal levels for specialized industrial applications and automotive tyre inflation.
Dual-Function Output: Dedicated options to switch seamlessly between standard compressed air and pure nitrogen gas.
Advanced Membrane Technology: High-speed, continuous gas output without the noisy cycle changes of traditional systems.
Large Digital Display: Clear, real-time digital monitoring of inflation pressure for absolute accuracy.
Intelligent Auto-Cutoff: Automatically stops inflation once the pre-set target pressure is reached.
Plug-and-Play Integration: Connects directly to standard workshop air compressors for immediate deployment.

Versatile Industrial and Automotive Applications

The TRISS Nitrogen Generator is engineered for any commercial environment requiring dry, high-purity nitrogen gas:

Automotive Tyre Inflating: Minimises pressure loss, reduces tyre running temperatures, and extends tread life for passenger cars, commercial fleets, and heavy-duty trucks.
Aerospace and Aviation: Meets strict safety standards for commercial and military aircraft tyre inflation.
Laser Cutting Shielding Gas: Prevents oxidation during precise metal laser-cutting processes.
Food & Beverage Packaging: Displaces oxygen to preserve freshness, extend shelf life, and prevent spoilage.
Electronics Manufacturing: Provides an inert atmosphere during selective and wave soldering to eliminate oxidation defects.
Chemical Storage: Blanket storage tanks to mitigate fire hazards and prevent chemical degradation.

Understanding Membrane Type Direct Nitrogen Generator Technology

The TRISS Nitrogen Generator relies entirely on Membrane Separation Technology to extract nitrogen from ambient air. This system operates as a continuous, solid-state separation process, making it fundamentally different from Pressure Swing Adsorption (PSA) systems.

 [ MEMBRANE SEPARATION MODULE ] ____________________ / Fast Gases Vent  [Compressed Air] / (Oxygen & Moisture)  ================>> [=======>  / <=======] >>================>> [Pure Nitrogen]  / / (97% - 99%) ____________________/

How the Membrane Separation Process Works

Compressed Air Intake: Standard compressed air enters the generator system from an external compressor. It passes through high-efficiency filters to remove oil, water droplets, and particulate matter.
The Separation Module: The clean air is directed into a specialized module containing thousands of microscopic, hollow polymer fibres. These fibres act as a precise molecular sieve.
Selective Permeation ("Fast" vs. "Slow" Gases): The separation relies on the principle of selective permeation. The polymer material allows different gases to pass through its walls at varying speeds:
- "Fast" Gases: Oxygen ($O_2$), carbon dioxide ($CO_2$), and water vapour ($H_2O$) permeate through the sides of the fibre walls quickly. They are collected and safely vented out into the atmosphere as waste gas.
- "Slow" Gases: Nitrogen ($N_2$) permeates through the polymer walls very slowly. Because it cannot easily escape through the sides, the nitrogen gas is forced to travel straight through the center of the fibres.
Continuous Pure Output: The nitrogen emerges from the end of the module at high velocity. It is collected in a storage receiver tank, ready for immediate, high-purity deployment.

Technical Specifications

Feature	Specification / Detail
Technology Type	Direct Membrane Separation
Nitrogen Purity Range	97% to 99% (Adjustable based on flow requirements)
Output Selection	Dual Mode (Pure Nitrogen / Compressed Air)
Control System	Microprocessor with Integrated Auto-Cutoff
Display Type	Large, High-Contrast Digital LED Pressure Monitor
Input Source Requirement	Clean, Dry Compressed Air

Why Choose Membrane Technology Over Pressure Swing Adsorption (PSA)?

No Moving Parts: Fewer mechanical components reduce wear, lowering overall maintenance costs.
Instantaneous Gas Production: Eliminates the need for a startup cycle; pure nitrogen is generated the moment compressed air flows through.
Compact and Lightweight Footprint: Ideal for space-constrained workshops, mobile service vans, or crowded industrial floors.
Silent Operation: Operates without the loud venting noises associated with PSA valve switching.

Advanced Digital LED Display

Monitor inflation parameters with clarity thanks to the integrated Digital LED display. This modern interface ensures precise readings of pressure and settings, allowing users to confidently achieve optimal tyre inflation levels quickly and efficiently.

Premium Nitrogen Purity

Experience the benefits of inflating tyres with nitrogen gas, offering 95% to 99% purity. The system ensures minimal moisture and contaminants reach your tyres, leading to reduced oxidation, longer tyre life, and more consistent tyre pressures over time.

User-Friendly Portable Design

Despite its robust construction, the inflator's compact dimensions (420 mm wide, 550 mm long) and approximate 38 kg weight make it easy to install or relocate on workshop floors. This versatility makes it ideal for automotive service centers and event-based setups alike.

FAQ's of NITROGEN AIR INFLATOR:

Q: How do I operate the Nitrogen Air Inflator?

A: Operation is straightforward-simply connect the standard air input coupler to your compressed air source, select the desired tyre pressure using the digital LED display, and attach the inflation hose to your tyre. The digital automatic system handles the rest, ensuring consistent and safe inflation.

Q: What are the main benefits of using a nitrogen inflator for tyres?

A: Nitrogen inflation offers significant advantages such as less pressure fluctuation, reduced risk of tyre oxidation, improved fuel efficiency, and longer tyre lifespan compared to regular air. The device's 95%-99% nitrogen purity enhances these benefits.

Q: Where can the Nitrogen Air Inflator be installed and used?

A: With its floor-standing, compact design and portable size, this inflator is well-suited for automotive workshops, service stations, tyre shops, and fleet management facilities. It requires access to 220 V AC power and a standard compressed air source.

Q: What is the process for filling a tyre with nitrogen using this inflator?

A: First, ensure the inflator is powered on and connected to a compressed air source. Use the digital display to set the required pressure, connect the hose to the tyre, and start the inflation. The automatic system will stop when the selected pressure is reached.

Q: When is nitrogen inflation preferable to regular air inflation?

A: Nitrogen is preferable when aiming for increased tyre longevity, improved stability, and reduced maintenance frequency. It's especially beneficial in vehicles where consistent tyre performance is crucial, such as fleet, commercial, or high-performance automobiles.

Q: What is the recommended input pressure for optimal operation?

A: The inflator is designed for an input pressure of 8-10 kg/cm2. Operating within this range ensures efficient nitrogen generation and safe, reliable inflation cycles.

Q: What type of tyres can be inflated with this device?

A: This inflator is suitable for a wide range of automobile tyres, including passenger cars, light trucks, and motorcycles, provided they use compatible pressure ranges and are inflated one at a time as per device specifications.
